120W 150W LED Retrofit Kit For HID Shoebox Light-5000K-Meanwell Driver-5 Years Warranty

LFD Lighting LED retrofit kit offers superior performance and value compared to competitors. Featuring a sleek, weatherproof design that accommodates outdoor applications, its advanced lighting technology combines an IP65-rated LED driver and heat management system. This highly efficient lighting system has a long lifespan of 100,000+ hours and is perfect for replacing 150-1000W Metal Halide lights, with energy savings of up to 80%.

Product features:

• New style and highly efficient wide-range input
• CREE Chip/UL approved Meanwell Driver/SUNON Fan
• Long lifespan, dimmable, and good heat dissipation
• Direct replacement for Metal Halide, Easy Installation, Labor cost-saving
• Fits many different fixtures to replace traditional lamps
• Adjustable bracket for different direction lighting

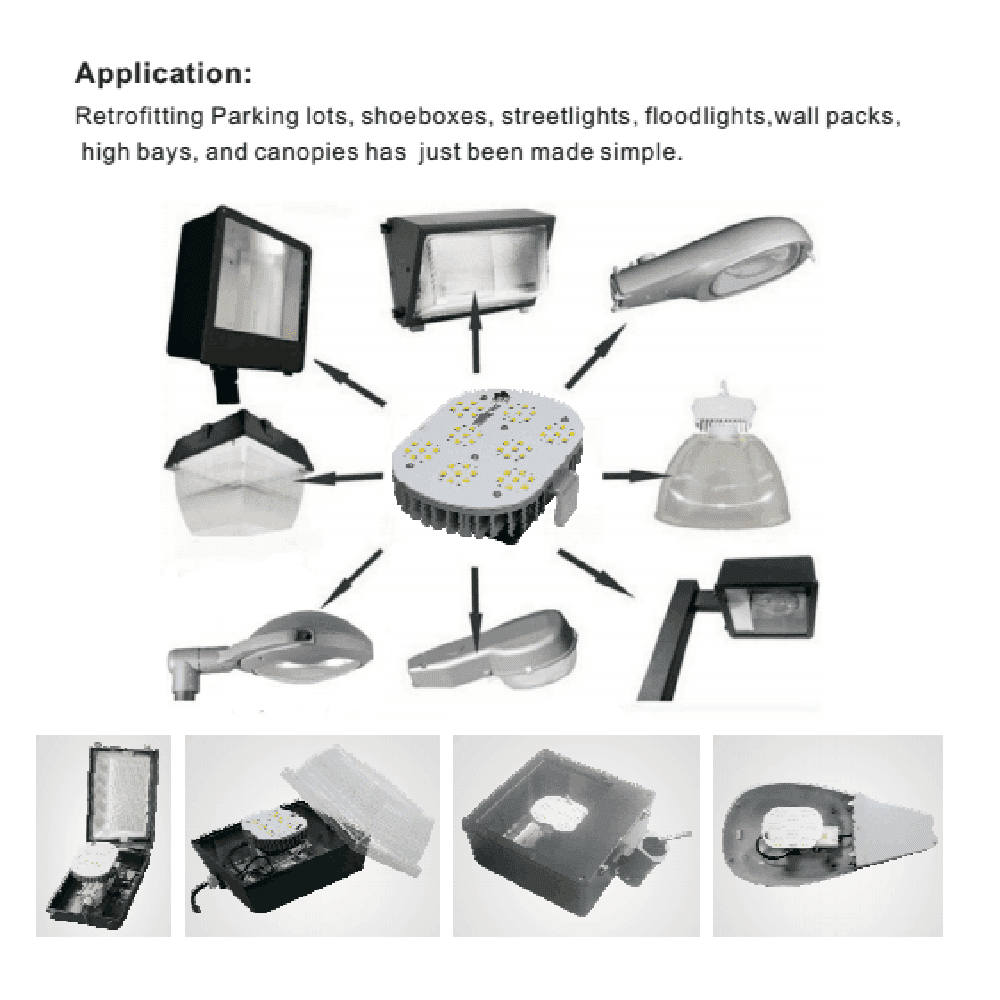

Application:

Retrofitting Parking lots, shoeboxes, streetlights, floodlights, wall packs, high bays, and canopies have just been made simple.

Specifications

• 2 Models:  E39 Base 120W and 150W
• Metal Halide Equivalent: 300W HID and 400W HID
• Lumens: 15,600 lumens and 19,500 lumens
• 100,000+ Hours Lamp Life
• Phillips LED Source and Meanwell Driver
• LPW: Lumen/Watt:100-120lm/W
• Working Environment Temperature: -20~+45℃
• Operating Humidity  20％-90％ RH
• Storage Temperature 10％-95％
• CRI: >80ra
• CCT: 5000K
• Warranty: 5 years

Warning: Please make sure the power is off before installation

• Fix the U bracket on the installation bracket with screws
• Fix the lamp body on the bracket with screws
• Adjust the length, height, etc. of the lamp body and bracket as per your specific requirements.
• Takedown all screw bases and ballasts in the fixtures before installation.
• Fix the driver on the fixture of the lamp with screws, then fix the products with a fixed bracket on the fixture
• Connect correctly the input wire of the lamp body and the output wire of the driver
• If the lamps are installed vertically, take high-bay fixtures
• Connect the driver with the local electric supply, insulation measures are needed when connecting the wires
• Turn on the power after the product is properly installed, then it can work normally.
